Artboards are another essential feature for any marketing design team, allowing you to work on multiple design concepts within a unified document. You can freely experiment with different ideas and variations without needing separate files.

Duplicating, resizing, coloring, and arranging Artboards are all seamless processes, streamlining the exploration of diverse design possibilities.

By using Artboards, you can create separate frames or pages of your design simultaneously. This is useful for a variety of projects, including web design. In Linearity Curve, Artboards behave similar to a layer, with the main difference being that they are represented on the canvas as fixed frames.

Add a new artboard

In Linearity Curve, there are three different ways to add a new artboard to your document. To activate the New Artboard Mode, you can tap the ic-plus icon button in the top right corner of the Layers Tab and then select New Artboard ic-add-artboard icon .

As soon as you tap the button, a suggestion box will appear at the top center of the canvas, which reads: “Tap or draw anywhere to create an artboard.”

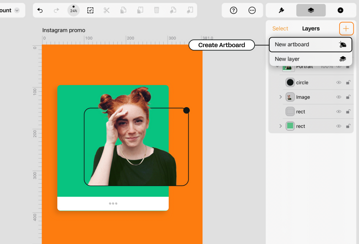

Add a new Artboard

Add a new artboard by tapping

Once you have tapped the New Artboard button, you can tap anywhere on the canvas. This will create a new Artboard with the same dimensions as the one you’ve previously created.

Add a new artboard by drawing

With the Artboard Panel activated, draw a new Artboard by holding & dragging your finger/pencil/mouse anywhere on the canvas.

Add a new artboard by using a template

When in New Artboard Mode, you can access the Artboard Panel. Here you have access to the Document Templates List.

To create a new Artboard using a standard size, tap one of the template icons. By scrolling through this section, you will find different template formats divided into the following categories: Paper formats, Devices, Resolutions, Social Media, Icons, and Custom.

In the Custom category, you can find all the Document Templates you have created inside the Document Picker. Alternatively, you can create a Custom Template by tapping the button at the bottom of this window.

At the bottom of the Document Templates List, you can choose the format of your Artboard by tapping the Portrait icon or Landscape icon. At the top of this tab, you can find the Search bar that helps you navigate and find your template.

Read more:

Visit this User Guide section if you want to learn how to create a new Custom Document Template.

ic-external-link icon

Select artboards

You can select an artboard by either tapping on its borders or title.

Alternatively, you can open the Layers Tab and tap on an Artboard’s name. A bounding box around the artboard will be displayed immediately.

Rename an artboard

You can rename any artboard in the same way that you rename layers. Navigate to the Layers Tab and double-tap on the artboard’s name to enter the Edit mode. Then, type your new Artboard's title.

By default, shapes and groups are created with consecutive indexation, such as "Rectangle 1," "Rectangle 2," "Group 1," "Group 2," etc. to help you manage and organize your projects by assigning individual names to each element.

Delete an artboard

Inside the Layers Tab, swipe left on the Artboard title or name and tap the Delete button. When you select the Artboard, a bin icon appears at the bottom. Tap the bin button to delete it.

Move an artboard

To move an artboard, and all the layers it contains, tap on the artboard title on the canvas, and drag and drop it to where you would like to position it.

Read more:

To avoid tapping countless times inside nested groups to select a specific element, you can activate the Click-Through Mode. This feature allows you to select the nested element you want directly with just one tap. To discover more about this feature, hop over to the Selection Tool section of our User Guide.

ic-external-link icon

Duplicate artboards

If you want to duplicate one artboard, select it and tap the Duplicate ic-duplicate icon button. A copy of your duplicated artboard will be inserted on the right side of the original board.

Export artboards

You can export single or multiple artboards depending on your needs.

Read more:

Visit this User Guide section to learn how to export in Linearity Curve

ic-external-link icon

Move elements between artboards

You can move elements between artboards in two ways:

  1. From the canvas, select the element(s) you want to move from Artboard 1 and then drag and drop it (them) onto Artboard 2.
  2. In the Layers Tab, select the element and drag it from Artboard 1 to Artboard 2.

Disable Artboard Clipping

You can set the clipping behavior of your artboard regarding objects that overlap outside the Artboard borders. You can choose between two clipping behaviors:

  1. Disable Clipping for selected Artboards
    Objects or parts of objects outside the borders of your selected Artboard will not be clipped and will be visible with reduced opacity.
  2. Clip all
    All objects or parts of objects outside Artboards will be automatically clipped.

You can find the settings in the Settings menu ic-settings icon on the top right of the Action Bar. Select Canvas, and the clipping options can be accessed under Clip Artboards.
