What is the Pen Tool?

It's much more than a pen. Despite the simplicity of its name, the Pen Tool is slightly different from the regular pen you might be used to.

With the Pen Tool, you can define anchor points and adjust the associated curves by manipulating two handles connected to each anchor. No worries. We’ll dive deep into all these concepts soon.

The Pen Tool allows you to create straight or curved paths that can be used as independent segments or complete shapes. It's the most direct way to create vectors in Linearity Curve.

When to use the Pen Tool?

The Pen Tool does not draw wherever you drag your pencil, finger, or mouse, just like a Brush or a Pencil Tool would. If you tap and drag your pencil on the Artboard, all that happens is that one anchor point appears with two handles that you rotate around it. As you let go, a curved path appears that is not connected to anything until you tap the canvas again.

It’s a strange behavior if you’re not used to it.

Also, you won't need the Pen Tool to create perfect shapes like circles, rectangles, or even stars. We have the Shape Tool for that. Linearity Curve's Shape Builder Tool allows you to create any shape you can imagine, such as rectangles, circles, polygons, or straight segments.

It's much easier to draw them this way.

The Pen Tool is essential for drawing curves precisely. Mastering the art of vector illustration requires learning many tools and techniques, but nothing may be more important than knowing how to create a freehand path or shape manually.

Master the Pen Tool in Linearity Curve

Unlock the full potential of the Pen Tool for your designs. Our detailed guide provides step-by-step instructions to help you create precise and dynamic vector graphics.

Learn more about vector design and how vectors are used in animation.

The Pen Tool is useful for tracing precise paths for images (if you don't use Auto Trace), turning raster graphics into vectors, and removing backgrounds. It can also manually create custom shapes that can’t be recreated using other tools.

For example, you can create polished lettering translated into logos or a custom typeface.

The anatomy of a vector path

The Pen Tool draws paths.

Anatomically, paths are defined by a mathematical formula that characterizes how the line or curve looks. They’re also known as Bézier Curves.

There are many types of Bézier Curves. They’re differentiated by how the curve is controlled, but “cubic-Bézier” is the most commonly used in graphics software. And Linearity Curve is no exception. What does that mean?

Bézier Curves are created by the handles that extend from any vector point, also known as a node. At the end of each handle, there is an adjustment point, and if you pull on it, the handles seem to pull the path outward into a curve magnetically.

bezier curve

If you want to geek out on what actually happens "Under the hood" of a Bezier curve, watch this video:

A path can be either open, like a simple arc, or closed, like a circle. For an open path, the anchor points at the start and the end of the path are called its endpoints.

Node types

Depending on your Node Type, your path will take a specific shape in Linearity Curve.

There are four types of nodes:

Icons of four different levers, labeled A to D
  • A Single Node Type (A) is when your path abruptly changes direction. It is very useful for creating sharp edges or sharp shapes. Remember that this Node type does not have handles since you are not creating a curve with it.
  • A Symmetrical Node (B) defines a smooth, symmetrical curve on each side of the point.
  • Conversely, a path defined by an Asymmetrical Node (C) is not.
  • With a Disconnected Node (D), you can control each of the handles surrounding a node independently from each other. And it’s a fantastic way to create complex shapes with as few nodes as possible.

What do the different colored nodes mean?

This feature, available in Linearity Curve and Linearity Move, is meant to help designers and illustrators in their creative process.

The idea is simple: the start node is green, the end is red, and the rest is blue. This new color-coding system makes understanding what’s happening with your vector paths easier.

Flowchart with colored nodes and bezier curves

How to use the Pen Tool

You can activate the Pen Tool using the P keyboard shortcut.

Pro tip: Go to Keyboard Shortcuts to check out our list of all supported keyboard shortcuts directly inside Linearity Curve.

Tap the Pen Tool icon in the Toolbar if you’re working on your iPad or iPhone without a keyboard. You’ll find that Linearity Curve's Toolbar is where you can access all of the app’s built-in tools, like the Selection Tool, Text Tool, Pencil Tool, Brush Tool, Rectangle Tool, Ellipse Tool, and more.

Pens, brushes, pencils? What’s the difference between them, and when should you use them? Here’s a handy guide:
Pen Tool: The Pen Tool creates precise paths and shapes by placing anchor points and adjusting control handles. It's ideal for creating smooth curves and intricate designs with precision.
Pencil Tool: The Pencil Tool is a freehand drawing tool that allows users to sketch and draw directly on the canvas. It's best suited for creating rough sketches and quick illustrations with a more natural, hand-drawn feel.
Brush Tool: The Brush Tool simulates traditional painting techniques, allowing users to apply strokes of color to the canvas. It offers a wide range of brush presets and settings for varying textures and effects, making it suitable for painting, shading, and adding artistic touches to designs.

You can use the Pen Tool with your finger or an Apple Pencil.

In the next part of the tutorial, we will focus on how the Pen tool works in Linearity Curve on a desktop device, but you can always refer to our Learning Hub section for more information on how the Pen Tool works on other devices.

Drawing straight paths

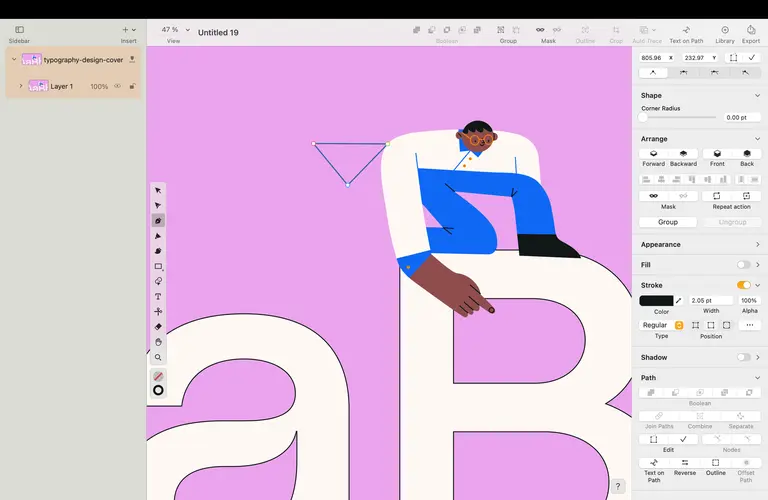

Click on the Pen Tool in the Left Toolbar to activate the Pen Tool. Click anywhere on the Artboard to add your first anchor point. If you click again, you add another anchor point, generating a line between the two points you made. You've just created a very basic path—a line.

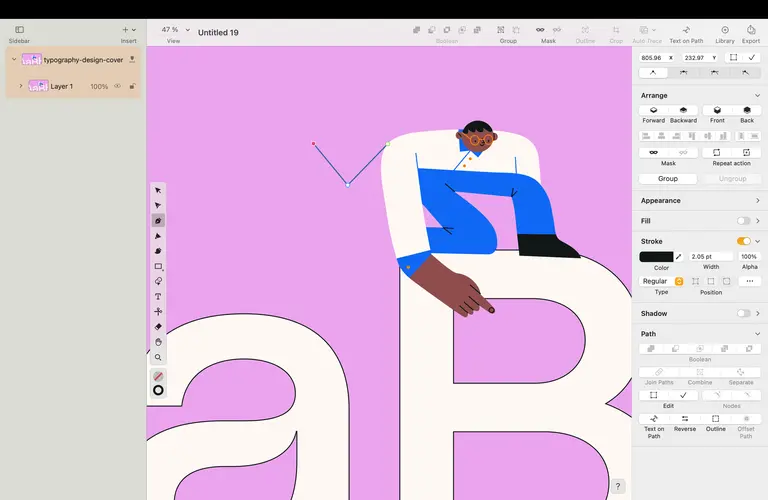

But if you keep clicking, you can create new anchor points to form a shape path with sharp corners.

When you select one of your anchor points, no handles or direction lines appear since this is a single-node type (1).

Note: You can activate the Snap to Grid feature to help you create a straight horizontal or vertical path.
The Pen Tool + Linearity

How to close straight paths with the Pen Tool

Closing paths is easy.

To close your path, position the Pen Tool over one of the two endpoints and click once. Then, click again over the other endpoint. You will be left with a polygon.

Select a different tool or tap anywhere on the menu to leave a path open.

The Pen Tool + Linearity

How to create shapes with straight paths

How to create shapes with straight paths with the Pen Tool

You want to create perfectly horizontal or vertical lines to draw a perfect square. Then, you'll have to lock your path onto the X or Y axis of your Artboard.

To do that, activate the Perpendicular Grid and then the Snap to Guide setting:

  • To set up a Perpendicular Square Grid, choose View, then Grid Settings, and then select Perpendicular.
  • To activate the Snap to Grid setting, go to View, and Snap to Guides from the Menu Bar to activate the snapping option.

Use the intersecting grid lines as a starting point for your node, and then allow the intuitive Snap to  Guide to draw your straight line horizontally, vertically, or diagonally.

The Pen Tool + Linearity

It may be easy to create this, but you might not use a straight path segment all that often. As mentioned, you can create perfect shapes with our Shape Tool. But it's up to you how you choose to design with vectors.

But learning straight vector lines is an excellent first lesson. Now, is anyone ready to practice?

Straight path Pen Tool practice

Let's put those design muscles to work.

This straightforward exercise will help you become more comfortable creating complex shapes with the Pen Tool. The key to using the Pen tool is practice, practice, practice.

Create a new Linearity Curve document and do the following:

  • Draw open paths in zig-zags
  • Draw closed paths of triangles and polygons where the first anchor point becomes the endpoint
  • Draw a rectangle, a square, and a diamond shape

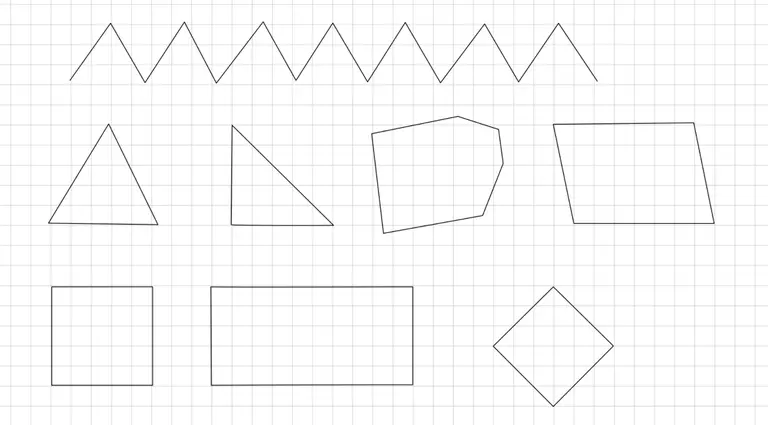

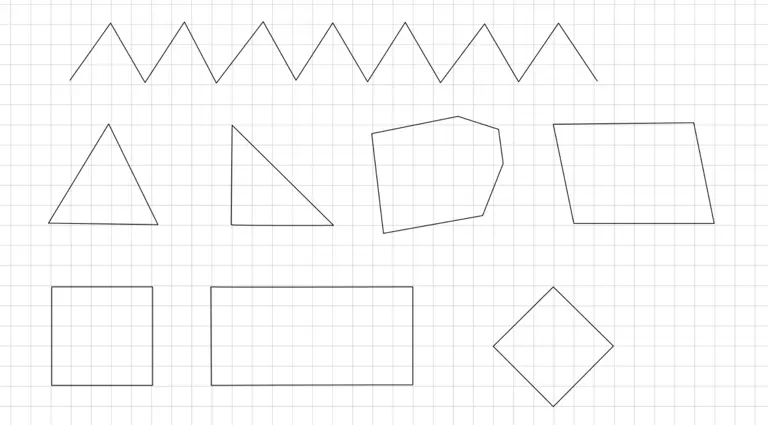

Have a look at the shapes we drew below. Try to replicate them before learning how to draw curved lines. Feel free to get creative and use a custom or gradient color to give your shapes more life.

Geometric shapes on grid paper The Pen Tool + Linearity

Creating curved paths

The Pen Tool shines when creating curved paths.

Unlike straight line segments, which simply click once with your mouse, curved paths are created by clicking and dragging out the direction handles.

You first need to click once on the Artboard to set a starting point for your curve. Dragging your cursor determines the curve’s direction and arc.

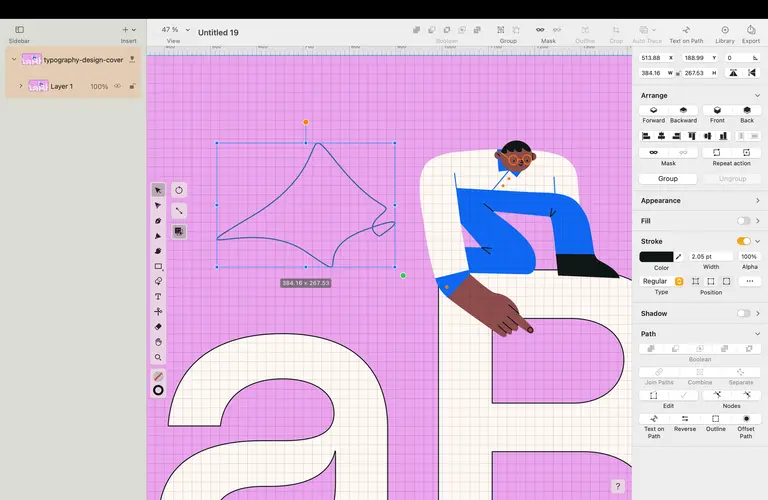

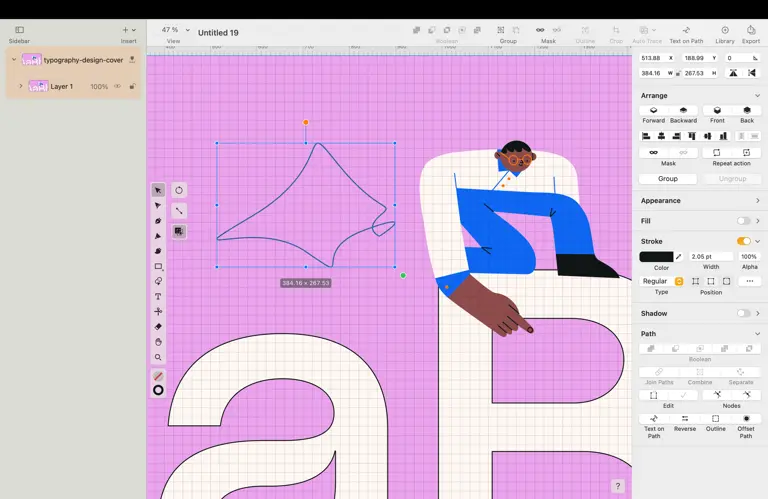

Once you lift your cursor off the Artboard, you choose the direction of your second point. A curved path is drawn between your two nodes as you click and drag again.

Depending on your handles, you can create a shallow or deep curve. Try experimenting with how you drag your handles to understand how to create various shapes.

If you click and drag without taking any other action, Linearity Curve will automatically generate an Asymmetrical Node. This will be highlighted at the top of the Style Tab, where Node Types appear.

The Pen Tool + Linearity

How to close curved paths

If you continuously create additional paths, you can close your shape by clicking once on the first node you created.

But let's say you have an existing open path on your Artboard that you want to close. Then you will need to use the Node Tool and Pen Tool simultaneously. First, select the entire path with the Node Tool, which helps you select individual points in your shapes and paths. Then, activate the Pen Tool and click on one of the two anchor points you want to close. Then, simply click on the other anchor point you want to connect. Now, you have a closed path.

Another super simple way to do this is to select an open path and click the “Close” icon (the open square) in the Style Inspector. Remember that the path in the bottom-most layer will stay positioned, while the paths above it will move accordingly to fit together.

Also, when adjacent path segments or Anchor Points do not overlap, Curve automatically adds a new line segment to connect the paths.

All this holds true for closing a straight path as well.

How to edit a curved path

There are a few ways that you can edit your curved path segment:

  • Move nodes. Select one node on your path and move it around the canvas until you are happy with the resulting curve. You can move it around by clicking it. Another way is to change the object's XY coordinates from the Arrange Tab.
  • Change handles. Select one node on your path and change the direction and length of the handles until you are happy with the resulting curve.
  • Delete nodes. By deleting nodes, you will notice how your path will automatically change. Fewer nodes translate into smoother-looking shapes and a continuous curve. Deleting nodes is a good way to make bigger changes to an element's shape. It can also remove any unwanted bumps in your artwork. To delete a node, click on the node you want to delete and then click the Delete button inside the Action Bar. Alternatively, open the Style Inspector and click Delete Anchor Points.
  • Add nodes. You can add more nodes by clicking on the path once with the Pen Tool.
  • Change the node type. To adjust the corner radius and achieve the desired shape, you can choose between various types of nodes.

Looking for more practice opportunities? Try one of Linearity's thousands of templates, with great base graphics for you to experiment with:

How to change Node types

You can change the node type by clicking on the other options in the Style Tab.

You'll notice how your node and, as a result, your current path will change accordingly.

For example, you can change a curve segment back into a straight line by clicking on the anchor point and changing the node Type by selecting Single Node (1) in the Style Tab. It's that easy.

Pen Tool gestures on iPad

Here are some cool additional features to make your life easier, allowing you to achieve different kinds of anchor points and paths without having to use the menu:

Gesture 1: one finger hold

When drawing a new line with the Pen Tool, place a second finger on the canvas to convert the previous node to a disconnected type. A disconnected node allows its handles to move independently, altering the direction and curvature of the subsequent curve.

Gesture 2: two finger hold

Place two additional fingers on the canvas to activate 45º snapping for both node handles. This can help you achieve a Mirrored Node.

Gesture 3: three finger hold

Hold three more fingers on the canvas to enable 45º snapping on only one handle.

Gesture 4: double-tap

Double-tap on the end node (highlighted in red) to end the path.
